Min. Pasūtījums:1 Piece/Pieces
Modelis Nr.: LA123WF1-SR01

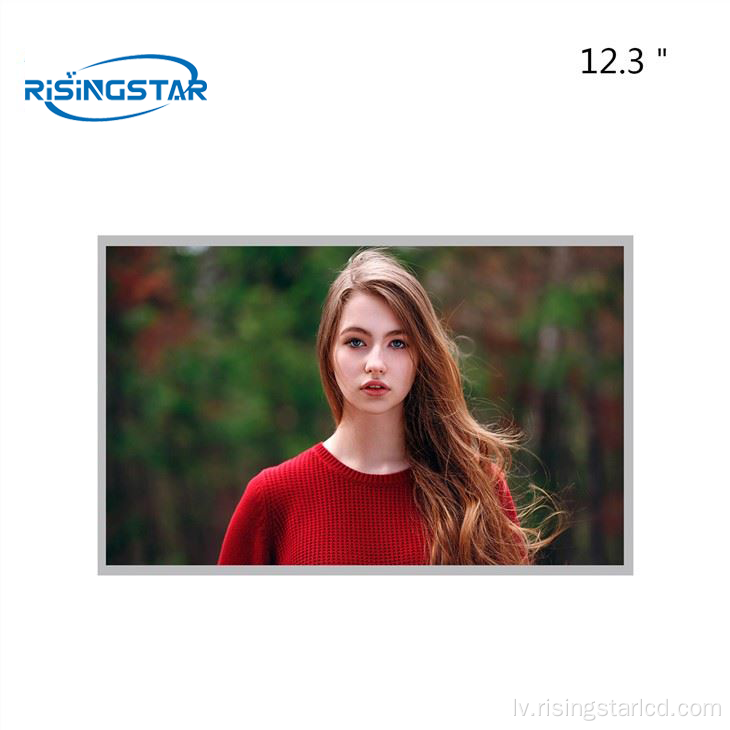

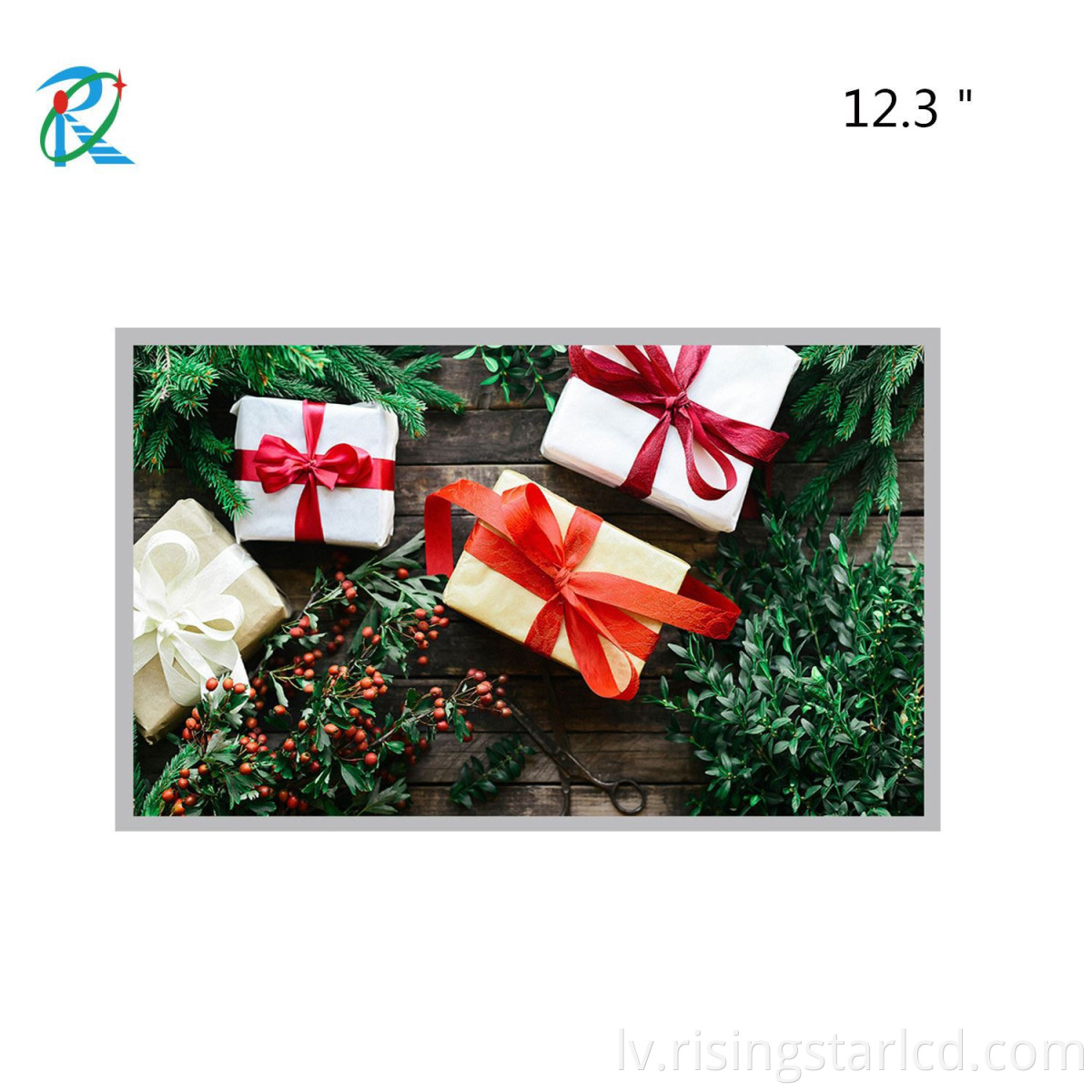

12.3 collu LG displejs LA123WF1-SR01 Augsta spilgtuma LCD panelis Saules gaisma redzama.
Tā paša zīmola un izmēra modeļi: LA123WF1-SR01, LA123WF1-SR03, LA123WF4-SR03, LA123WF5-SL01, LA123WF4-SR08, LA123WF4-SL02, LA123WF4-SL01, LA123WF4-SR01, LA123 -Sr02, LA123WF1- SR02, LA123WF4-SR09.
Jūs varat izvēlēties pareizo modeli atbilstoši savām vajadzībām.
| brand | LG Display (LG Display) | Model name | LA123WF1-SR01 |
| size | 12.3 inch | Screen type | a-Si TFT-LCD,LCD module |
| resolution | 1920(RGB)×720 167PPI | Pixel configuration | RGB vertical bar |
| Display size | 292.032×109.512(H×V)mm | Surface treatment | Hard coating |
| Brightness(cd/m²) | 600 cd/m² (Min.) or customized | contrast | 800:1 (Typ.) [transmission] |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) | Appearance of size | 310×128×11.05mm(H×V×D) |
| Signal system | 110 pins RSDS (2 Channel) , FPC |
|
|
| Maximum rated | Storage temperature: -40 ~ 95 °C Working temperature: -40 ~ 85 °C |
|
|
Karstās tagi: 12.3 "LG LA123WF1-SR01 TFT LCD modulis, Ķīna, rūpnīca, lēta, cena, pielāgots, citāts, logu vērsts LCD, 43 collu LCD displeja ekrāni, 2000 NITS āra displeji, 32 collu LCD displejs, liela karstuma izkliedēšana LCD displeja displejs , TV plāns ekrāns, 43 collu āra LCD ekrāns , LCD panelis, LCD modulis, augsta spilgtuma displejs.
