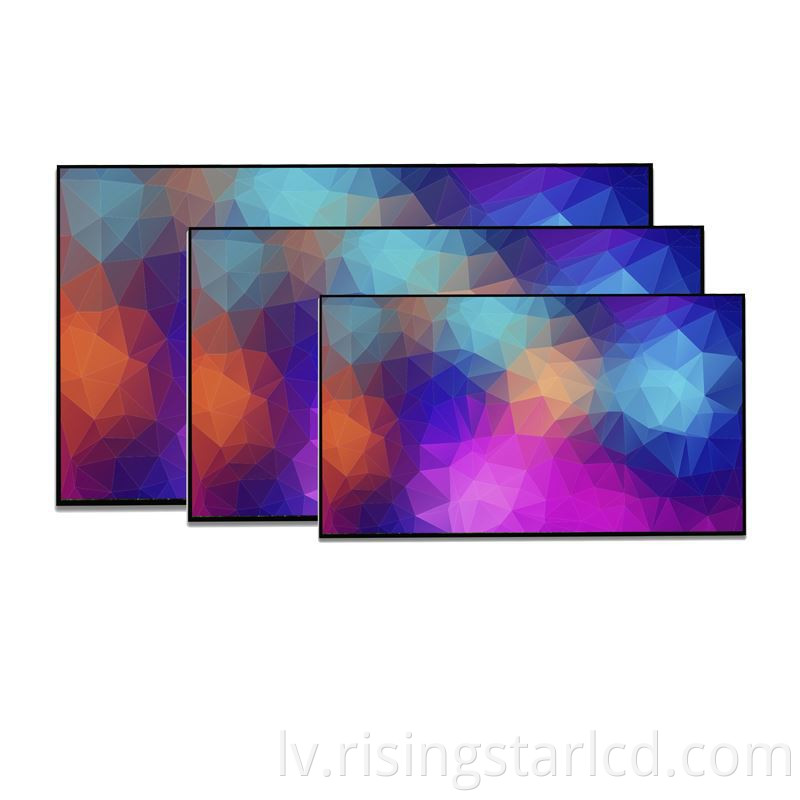

700nits 23,6 "Paneļa IPS LVDS 2K Augsta spilgtuma nomaiņa TV ekrāns TFT LCD panelis 23.6
| Item | 23.6'' high brightness LCD panel |
| Model | RS236ENT-N07 |
| Screen Size | 23.6 inches |
| Display Area | 476.64*268.11mm |
| Outline Dimenssion | 503.5*295.09*16.3mm |
| Panel Type | High brightness LCD with WLED |
| Configuration | RGB Vertical Stripe |
| Resolution | 1920*1080pixel |
| Brightness | 700nits |
| Aspect Ratio | 16:9 |
| Constrast Ratio | 3000:1 (Typ.) (TM) |
| Response Time | 20/5ms (Typ.)(Tr/Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥20 |
| Driver Elements | a-Si TFT-LCD |
| Surface Treatment | Antiglare (Haze 25%), Hard coating (3H) |
| Display Color | 16.7M 72% (CIE1931) |
| Display Mode | MVA, Normally Black, Transmissive |
| Interface Type | 30 pins LVDS (2 ch, 8-bit) , Connector |
| Input Voltage | DC12V |
| Power | 36.2W |
| Weight | 1.9kg |
| Backlit Lifetime | 50000hrs |
| Operating Temp. | 0°- 60°C |
| Storage Temp. | -20°- 60°C |
